Dauphin Island Airport (4R9) Information
Dauphin Island, AL
|
Latest photos of Dauphin Island Airport (4R9)
by Chad Reetz |

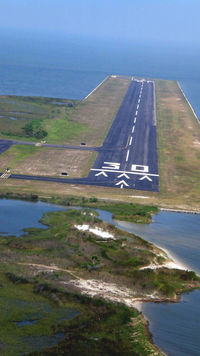

by Stefan H Gerhardt |
| |
Location & QuickFacts
| FAA Information Effective: | 2011-08-25 |
| Airport Identifier: | 4R9 |
| Airport Status: | Operational |
| Longitude/Latitude: | 088-07-38.9000W/30-15-37.7700N
-88.127472/30.260492 (Estimated) |
| Elevation: | 5 ft / 1.52 m (Surveyed) |
| Land: | 22 acres |
| From nearest city: | 0 nautical miles NW of Dauphin Island, AL |
| Location: | Mobile County, AL |
| Magnetic Variation: | 02E (1985) |
Owner & Manager
| Ownership: | Publicly owned |
| Owner: | Mobile County |
| Address: | 205 Government Street
Mobile, AL 36644 |
| Phone number: | 251-574-8606 |
| Manager: | William Meredith |
| Address: | 11562 Fairway Dr
Irvington, AL 36544 |
| Phone number: | 251-574-8606 |
Airport Operations and Facilities
| Airport Use: | Open to public |
| Wind indicator: | Yes |
| Segmented Circle: | Yes |
| Control Tower: | No |
| Lighting Schedule: | DUSK-DAWN
ACTVT MIRL RY 12/30 AND PVASI RYS 12 & 30 - CTAF. |
| Beacon Color: | Clear-Green (lighted land airport) |
| Landing fee charge: | No |
| Sectional chart: | New Orleans |
| Region: | ASO - Southern |
| Boundary ARTCC: | ZHU - Houston |
| Tie-in FSS: | ANB - Anniston |
| FSS on Airport: | No |
| FSS Toll Free: | 1-800-WX-BRIEF |
| NOTAMs Facility: | ANB (NOTAM-d service avaliable) |
| Federal Agreements: | NGY |
Airport Communications
| CTAF: | 122.800 |
| Unicom: | 122.800 |
Airport Services
| Airframe Repair: | NONE |
| Power Plant Repair: | NONE |
| Bottled Oxygen: | NONE |
| Bulk Oxygen: | NONE |
|
Runway Information
Runway 12/30
| Dimension: | 3000 x 80 ft / 914.4 x 24.4 m |
| Surface: | ASPH, Good Condition |
| Weight Limit: | Single wheel: 30000 lbs. |
| Edge Lights: | Medium |
| |
Runway 12 |
Runway 30 |
| Longitude: | 088-07-53.1900W | 088-07-24.6100W |
| Latitude: | 30-15-45.9300N | 30-15-29.6100N |
| Elevation: | 5.00 ft | 5.00 ft |
| Traffic Pattern: | Left | Left |
| Markings: | Basic, Good Condition | Basic, Good Condition |
| Displaced threshold: | 202.00 ft | 140.00 ft |
| VASI: | pulsating/steady burning on left side | pulsating/steady burning on right side |
| Obstruction: | , 50:1 slope to clear
RY 12 APCH SLOPE 50:1 TO DSPLCD THLD. | 45 ft trees, 1119.0 ft from runway, 19 ft left of centerline, 20:1 slope to clear
RY 30 APCH SLOPE 27:1 TO DSPLCD THLD. |
|
Radio Navigation Aids
| ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
| ESU | NDB | Summerdale | | 204.00 | 01E | 25.3 nm |
| MO | NDB | Wisle | | 248.00 | 02E | 31.4 nm |
| NPA | TACAN | Pensacola | 119X | | 01E | 42.5 nm |
| BIX | TACAN | Keesler | 055X | | 01E | 42.5 nm |
| NUN | VOR | Saufley | | 108.80 | 01E | 43.0 nm |
| GPT | VOR/DME | Gulfport | 27X | 109.00 | 02E | 49.9 nm |
| BFM | VORTAC | Brookley | 075X | 112.80 | 04E | 21.5 nm |
| SJI | VORTAC | Semmes | 100X | 115.30 | 05E | 30.4 nm |
Remarks
- BIRDS ON & INVOF ARPT.
- EXTSV BANNER TOW OPNS ARND IS CST LN & N TO MOBILE.
- VFR ONLY.
