General Edward Lawrence Logan International Airport (BOS) Information

Boston, MA

All Airports in Massachusetts    All Airports in United States    Home

BOS



Total 13 photos. View all photos
Latest photos of General Edward Lawrence Logan International Airport (BOS)
  • General Edward Lawrence Logan International Airport (BOS) - Sunrise View of Boston from the Logan International Airport of Boston  - by Jonas Laurince by Jonas Laurince

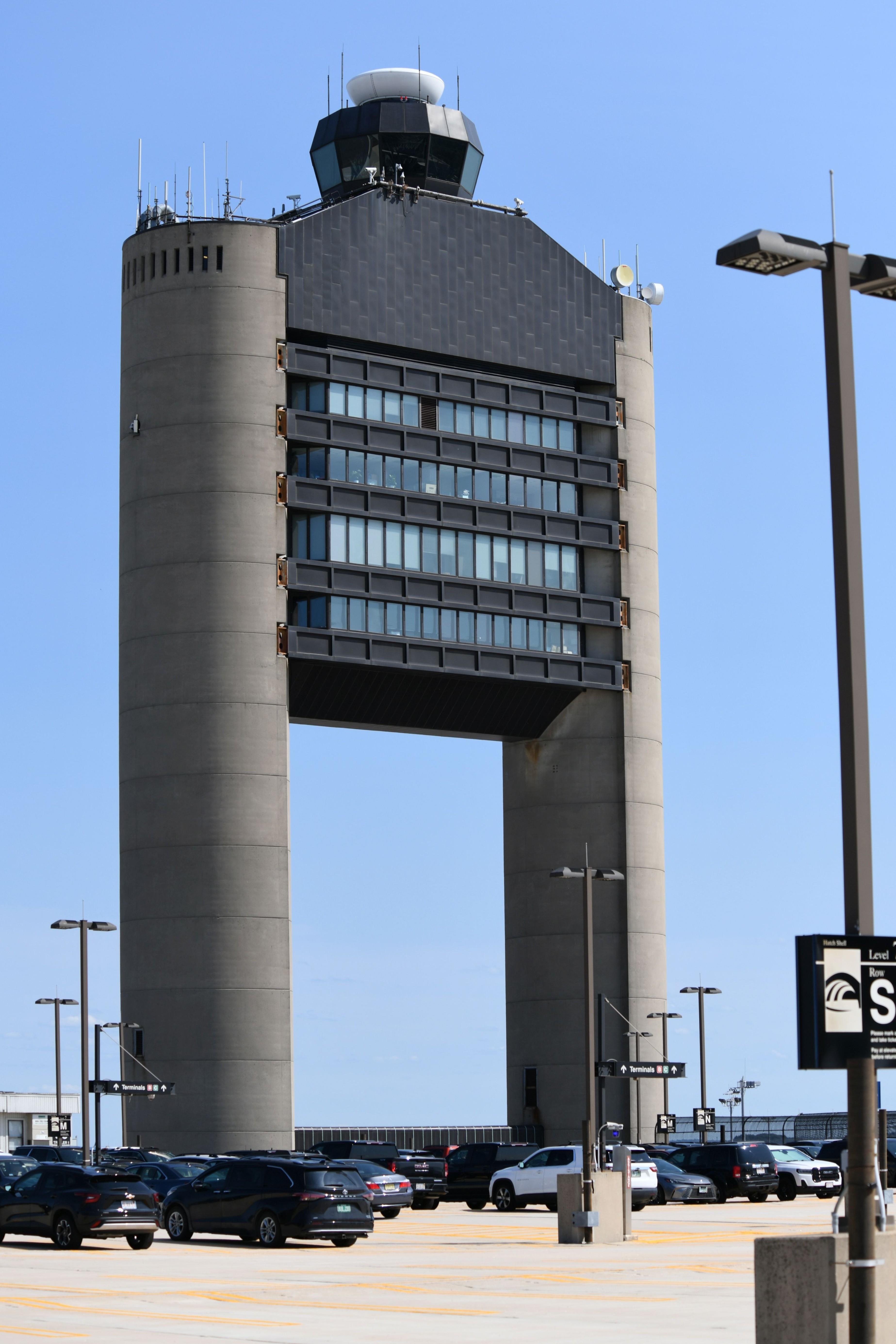

  • General Edward Lawrence Logan International Airport (BOS) - View of the Logan International Airport of Boston and the Control Tower - by Jonas Laurince by Jonas Laurince
  • General Edward Lawrence Logan International Airport (BOS) - The Airport and the Control Tower - by Jonas Laurince by Jonas Laurince
  • General Edward Lawrence Logan International Airport (BOS) - Airport of Boston - by Jonas Laurince by Jonas Laurince
Have a photo of this airport? Share with others.

Location & QuickFacts

FAA Information Effective:2013-12-12
Airport Identifier:BOS
Airport Status:Operational
Longitude/Latitude:071-00-23.1000W/42-21-46.7000N
-71.006417/42.362972 (Estimated)
Elevation:20 ft / 6.10 m (Surveyed)
Land:2384 acres
From nearest city:1 nautical miles E of Boston, MA
Location:Suffolk County, MA
Magnetic Variation:16W (1995)

Owner & Manager

Ownership:Publicly owned
Owner:Mass Port Authority
Address:One Harborside Dr Ste 200s
Boston, MA 02128
Phone number:617-428-2800
Manager:Edward Freni
Address:Logan International Airport, One Harborside Dr Ste 200s
East Boston, MA 02128-2909
Phone number:617-567-5400

Airport Operations and Facilities

Airport Use:Open to public
Wind indicator:Yes
Segmented Circle:No
Control Tower:Yes
Beacon Color:Clear-Green (lighted land airport)
Landing fee charge:Yes
Sectional chart:New York
Region:ANE - New England
Boundary ARTCC:ZBW - Boston
Tie-in FSS:BDR - Bridgeport
FSS on Airport:No
FSS Toll Free:1-800-WX-BRIEF
NOTAMs Facility:BOS (NOTAM-d service avaliable)
Certification type/date:I E S 09/1972
Federal Agreements:NGPY3

Airport Communications

Unicom:122.950

Airport Services

Fuel available:100LLA
Airframe Repair:MAJOR
Power Plant Repair:MAJOR
Bottled Oxygen:HIGH/LOW
Bulk Oxygen:HIGH/LOW

Runway Information

Runway 04L/22R

Dimension:7861 x 150 ft / 2396.0 x 45.7 m
Surface:ASPH, Good Condition
Surface Treatment:Saw-cut or plastic Grooved
Pavement Class:90 /F/C/W/T
Weight Limit:Single wheel: 120000 lbs.
Dual wheel: 250000 lbs.
Dual tandem wheel: 550000 lbs.
SEE PCN
SEE PCN
SEE PCN
SEE PCN
SEE PCN
SEE PCN
Edge Lights:High
  Runway 04L Runway 22R
Longitude:071-00-51.6198W071-00-16.2583W
Latitude:42-21-28.7580N42-22-41.8457N
Elevation:14.00 ft15.00 ft
Alignment:20127
Traffic Pattern:LeftLeft
Markings:Precision instrument, Good ConditionPrecision instrument, Good Condition
Crossing Height:50.00 ft50.00 ft
Displaced threshold:0.00 ft815.00 ft
VASI:4-light PAPI on left side4-light PAPI on left side
Visual Glide Angle:3.00°3.00°
RVR Equipment:touchdown, rollouttouchdown, rollout
Runway End Identifier:YesNo
Obstruction:161 ft boat, 3250.0 ft from runway, 18:1 slope to clear44 ft boat, 670.0 ft from runway, 10:1 slope to clear
APCH RATIO 33:1 FROM DSPLCD THR; 50:1 TO THR WHEN CHANNEL IS CLEAR.
Decleard distances:Take off run available 7861.00 ft
Take off distance available 7861.00 ft
Actual stop distance available 7861.00 ft
Landing distance available 7861.00 ft
Take off run available 7861.00 ft
Take off distance available 7861.00 ft
Actual stop distance available 7861.00 ft
Landing distance available 7046.00 ft

Runway 04R/22L

Dimension:10005 x 150 ft / 3049.5 x 45.7 m
Surface:ASPH, Good Condition
Surface Treatment:Saw-cut or plastic Grooved
Pavement Class:90 /F/C/W/T
Weight Limit:Single wheel: 120000 lbs.
Dual wheel: 250000 lbs.
Dual tandem wheel: 550000 lbs.
SEE PCN
SEE PCN
SEE PCN
SEE PCN
SEE PCN
SEE PCN
Edge Lights:High
  Runway 04R Runway 22L
Longitude:071-00-42.4631W070-59-57.4487W
Latitude:42-21-03.8124N42-22-36.8402N
Elevation:19.00 ft14.00 ft
Alignment:20127
ILS Type:ILS/DME ILS/DME
Traffic Pattern:LeftLeft
Markings:Precision instrument, Good ConditionPrecision instrument, Good Condition
Crossing Height:67.00 ft71.00 ft
Displaced threshold:1154.00 ft1199.00 ft
VASI:4-light PAPI on left side4-light PAPI on right side
Visual Glide Angle:3.00°3.00°
RVR Equipment:touchdown, midfield, rollouttouchdown, midfield, rollout
Approach lights:ALSF2MALSF
Runway End Identifier:NoNo
Centerline Lights:YesYes
Touchdown Lights:YesNo
Obstruction:157 ft boat, 1550.0 ft from runway, 8:1 slope to clear
APCH RATIO 17:1 FROM DSPLCD THR; 43:1 WHEN CHANNEL IS CLEAR.
45 ft boat, 525.0 ft from runway, 7:1 slope to clear
APCH RATIO 38:1 FROM DSPLCD THR.
Decleard distances:Take off run available 10005.00 ft
Take off distance available 10005.00 ft
Actual stop distance available 10005.00 ft
Landing distance available 8851.00 ft
Take off run available 10005.00 ft
Take off distance available 10005.00 ft
Actual stop distance available 10005.00 ft
Landing distance available 8806.00 ft

Runway 09/27

Dimension:7000 x 150 ft / 2133.6 x 45.7 m
Surface:ASPH,
Surface Treatment:Saw-cut or plastic Grooved
Pavement Class:90 /F/C/W/T
Weight Limit:Single wheel: 120000 lbs.
Dual wheel: 250000 lbs.
Dual tandem wheel: 550000 lbs.
SEE PCN
SEE PCN
SEE PCN
SEE PCN
SEE PCN
SEE PCN
Edge Lights:High
  Runway 09 Runway 27
Longitude:071-00-46.4178W070-59-15.7332W
Latitude:42-21-20.7150N42-21-36.7806N
Elevation:17.00 ft14.00 ft
Alignment:77127
ILS Type:ILS/DME
Traffic Pattern:LeftLeft
Markings:Precision instrument, Good ConditionPrecision instrument, Good Condition
Crossing Height:0.00 ft71.00 ft
VASI:4-light PAPI on left side
Visual Glide Angle:0.00°3.00°
RVR Equipment:touchdown, rollouttouchdown, rollout
Runway End Identifier:NoYes
Centerline Lights:YesYes
Touchdown Lights:NoNo
Obstruction:158 ft boat, 2050.0 ft from runway, 11:1 slope to clear45 ft boat, 500.0 ft from runway, 6:1 slope to clear
Decleard distances:Take off run available 7000.00 ft
Take off distance available 7000.00 ft
Actual stop distance available 7000.00 ft
Landing distance available 7000.00 ft
Take off run available 7000.00 ft
Take off distance available 7000.00 ft
Actual stop distance available 7000.00 ft
Landing distance available 7000.00 ft

Runway 14/32

Dimension:5000 x 100 ft / 1524.0 x 30.5 m
Surface:ASPH, Good Condition
Surface Treatment:Saw-cut or plastic Grooved
Pavement Class:85 /F/C/W/T
Weight Limit:Single wheel: 120000 lbs.
Dual wheel: 250000 lbs.
Dual tandem wheel: 490000 lbs.
SEE PCN
SEE PCN
SEE PCN
SEE PCN
SEE PCN
SEE PCN
Edge Lights:High
  Runway 14 Runway 32
Longitude:071-01-23.7917W071-00-29.6859W
Latitude:42-21-23.7528N42-20-54.9589N
Elevation:17.00 ft20.00 ft
Alignment:125127
Traffic Pattern:LeftLeft
Markings:Basic, Good Condition
AVBL FOR DEPARTURE ONLY.
Precision instrument, Good Condition
Crossing Height:0.00 ft45.00 ft
VASI:4-light PAPI on left side
Visual Glide Angle:0.00°3.00°
Runway End Identifier:Yes
Obstruction:174 ft bldg, 1364.0 ft from runway, 70 ft left of centerline
APPROACHES TO RWY 14 NOT AUTHORIZED.
Decleard distances:Take off run available 5000.00 ft
Take off distance available 5000.00 ft
Actual stop distance available 5000.00 ft
Landing distance available 5000.00 ft
Take off run available 5000.00 ft
Take off distance available 5000.00 ft
Actual stop distance available 5000.00 ft
Landing distance available 5000.00 ft

Runway 15L/33R

Dimension:2557 x 100 ft / 779.4 x 30.5 m
Surface:ASPH, Good Condition
Pavement Class:90 /F/C/W/T
Weight Limit:Single wheel: 120000 lbs.
Dual wheel: 250000 lbs.
Dual tandem wheel: 550000 lbs.
SEE PCN
SEE PCN
SEE PCN
SEE PCN
SEE PCN
SEE PCN
Edge Lights:Medium
  Runway 15L Runway 33R
Longitude:071-00-32.8581W071-00-08.8465W
Latitude:42-22-24.8851N42-22-06.9658N
Elevation:15.00 ft14.00 ft
Alignment:127127
Traffic Pattern:LeftLeft
Markings:Basic, Good ConditionBasic, Good Condition
Runway End Identifier:NoNo
Decleard distances:Take off run available 2557.00 ft
Take off distance available 2557.00 ft
Actual stop distance available 2557.00 ft
Landing distance available 2557.00 ft
Take off run available 2557.00 ft
Take off distance available 2557.00 ft
Actual stop distance available 2557.00 ft
Landing distance available 2557.00 ft

Runway 15R/33L

Dimension:10083 x 150 ft / 3073.3 x 45.7 m
Surface:ASPH,
Surface Treatment:Saw-cut or plastic Grooved
Pavement Class:90 /F/C/W/T
Weight Limit:Single wheel: 120000 lbs.
Dual wheel: 250000 lbs.
Dual tandem wheel: 550000 lbs.
SEE PCN
SEE PCN
SEE PCN
SEE PCN
SEE PCN
SEE PCN
Edge Lights:High
  Runway 15R Runway 33L
Longitude:071-01-04.4074W070-59-29.7116W
Latitude:42-22-27.3750N42-21-16.7425N
Elevation:19.00 ft15.00 ft
Alignment:127127
ILS Type:ILS/DME ILS/DME
Traffic Pattern:LeftLeft
Markings:Precision instrument, Good ConditionPrecision instrument, Good Condition
Crossing Height:71.00 ft68.00 ft
Displaced threshold:881.00 ft0.00 ft
VASI:4-light PAPI on left side4-light PAPI on left side
Visual Glide Angle:3.00°3.00°
RVR Equipment:touchdown, midfield, rollouttouchdown, midfield, rollout
Approach lights:MALSRALSF2
Runway End Identifier:NoNo
Centerline Lights:YesYes
Touchdown Lights:YesYes
Obstruction:62 ft trees, 3040.0 ft from runway, 140 ft left of centerline, 45:1 slope to clear
APCH RATIO 50:1 FROM DSPLCD THR.
160 ft boat, 5075.0 ft from runway, 30:1 slope to clear
Decleard distances:Take off run available 10083.00 ft
Take off distance available 10083.00 ft
Actual stop distance available 10083.00 ft
Landing distance available 9202.00 ft
Take off run available 10083.00 ft
Take off distance available 10083.00 ft
Actual stop distance available 10083.00 ft
Landing distance available 10083.00 ft

Remarks

BIRDS ON & INVOF ARPT.
NUMEROUS CRANES ON & INVOF OF ARPT UP TO & INCLUDING 250 FT. MSL.
RY14/32 UNIDIRECTIONAL; NO LNDGS RY 14; NO TAKEOFFS RY 32.
ASDE-X SURVEILLANCE SYSTEM IN USE: PILOTS SHOULD OPERATE TRANSPONDERS WITH MODE C ON ALL TWYS AND RYS.
PILOTS SHOULD COMPLETE ALL CALCULATIONS PRIOR TO PUSHBACK FROM GATE.
NOISE SENSITIVE AREA - HELS OPNG WITHIN THE CTZL ARE REQD TO MAINT THE HIGHEST POSSIBLE ALT.
BTN 0000-0600 - RY 15R IS PREFERENTIAL NGT RY FOR TKOF & RY 33L IS PREFERENTIAL NGT RY FOR LNDG.
FOR NOISE ABATEMENT PROCEDURES CALL 617-561-1636 0900-1700 MON-FRI.
NO RON PARKING FOR NON-TENANT CHARTER AIRCRAFT WITHOUT PRIOR MASSPORT PERMISSION.
TERMINAL E; NORTH & SOUTH CARGO ARRIVALS CTC MASSPORT GATE CONTROL ON FREQ 131.1 BEFORE ENTERING/DEPARTING RAMP AREA.
PRVDD THE DESIGNATION OF A MOVEMENT AREA ASSOCIATED WITH THE RELCTN IS COORDINATED WITH & DESIGNATED BY BOSTON ATCT; APPROPRIATE HOLD LINES ESTABLISHED & MARKED FOR SERVICE VEHICLE MOVEMENT & TAXILANES; RELCTN MARKED IN ACCORDANCE WITH FAA ADVISORY CIRCULAR/5930-2.
