FAA Information Effective: | 2013-12-12 |
Airport Identifier: | CWF |
Airport Status: | Operational |
Longitude/Latitude: | 093-08-35.5000W/30-12-38.1000N -93.143194/30.210583 (Estimated) |
Elevation: | 17 ft / 5.18 m (Surveyed) |
Land: | 1310 acres |
From nearest city: | 4 nautical miles E of Lake Charles, LA |
Location: | Calcasieu Parish, LA |
Magnetic Variation: | 04E (1990) |
Ownership: | Publicly owned |
Owner: | Chennault Intl Arpt Authority |
Address: | 3650 Sen. J. Bennett Johnston Ave Lake Charles, LA 70615-6849 |
Phone number: | 337-491-9961 |
Manager: | Randolph R. Robb DEPUTY DIRECTOR. |
Address: | 3650 Sen. J. Bennett Johnston Ave Lake Charles, LA 70615-6849 |
Phone number: | 337-491-9961 |
Airport Use: | Open to public |
Wind indicator: | Yes |
Segmented Circle: | Yes |

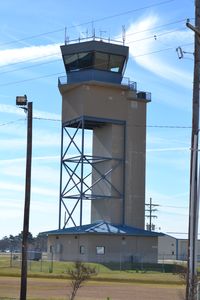

Control Tower: | Yes |
Lighting Schedule: | SEE RMK WHEN ATCT CLSD ACTVT HIRL RY 15/33; MALSR RY 15 & REIL RY 33 - CTAF. |
Beacon Color: | Clear-Green (lighted land airport) |
Landing fee charge: | No |
Sectional chart: | Houston |
Region: | ASW - Southwest |
Traffic Pattern Alt: | 1483 ft |
Boundary ARTCC: | ZHU - Houston |
Tie-in FSS: | DRI - De Ridder |
FSS on Airport: | No |
FSS Toll Free: | 1-800-WX-BRIEF |
NOTAMs Facility: | CWF (NOTAM-d service avaliable) |
Certification type/date: | IV A U 07/1992 6 HRS PPR FOR ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 337-491-9961. |
Federal Agreements: | N |
CTAF: | 124.200 |
Unicom: | 122.950 |
Fuel available: | 100LLA1+ FOR FUEL CALL 337-436-4877. |
Bottled Oxygen: | LOW |
Bulk Oxygen: | NONE |
Dimension: | 10702 x 200 ft / 3262.0 x 61.0 m |
Surface: | CONC, Fair Condition |
Weight Limit: | Single wheel: 75000 lbs. Dual wheel: 200000 lbs. Dual tandem wheel: 320000 lbs. Dual dual tandem wheel: 750000 lbs. |
Edge Lights: | High |
Runway 15 | Runway 33 | |
---|---|---|
Longitude: | 093-09-01.8059W | 093-08-09.1623W |
Latitude: | 30-13-25.8893N | 30-11-50.3361N |
Elevation: | 14.00 ft | 16.00 ft |
Alignment: | 127 | 127 |
ILS Type: | ILS | |
Traffic Pattern: | Left | Right |
Markings: | Precision instrument, Fair Condition | Precision instrument, Fair Condition |
Crossing Height: | 53.00 ft | 53.00 ft |
VASI: | 4-light PAPI on left side | 4-light PAPI on left side |
Visual Glide Angle: | 3.00° | 3.00° |
Approach lights: | MALSR | |
Runway End Identifier: | No | Yes |
Decleard distances: | Take off run available 10701.00 ft Take off distance available 10701.00 ft Actual stop distance available 10701.00 ft Landing distance available 10701.00 ft | Take off run available 10701.00 ft Take off distance available 10701.00 ft Actual stop distance available 10701.00 ft Landing distance available 10701.00 ft |
INDEX E AVBL WITH 24 HRS NOTICE CALL AMGR 337-491-9961. |
BIRDS ON & INVOF OF ARPT |
OCNL HEAVY JET ACFT ON & INVOF ARPT. |
TFC PATTERN 600' & BLO. PRVDD ATCT OPNL TO PRVD ATC SVCS PRIOR TO ACFT OPNS. |
