Livermore Municipal Airport (LVK) - FAA Information
Livermore, CA
|
Latest photos of Livermore Municipal Airport (LVK)
by R Hermann |
by R Hermann |
by R Hermann |
by R Hermann |
Location & QuickFacts
| FAA Information Effective: | 2008-06-05 |
| Airport Identifier: | LVK |
| Airport Status: | Operational |
| Longitude/Latitude: | 121-49-13.3000W/37-41-36.2000N
-121.820361/37.693389 (Estimated) |
| Elevation: | 400 ft / 121.92 m (Surveyed) |
| Land: | 643 acres |
| From nearest city: | 3 nautical miles W of Livermore, CA |
| Location: | Alameda County, CA |
| Magnetic Variation: | 16E (1980) |
Owner & Manager
| Ownership: | Publicly owned |
| Owner: | City Of Livermore |
| Address: | 1052 South Livermore Ave
Livermore, CA 94550 |
| Phone number: | 925-960-4200 |
| Manager: | Leander Hauri |
| Address: | 636 Terminal Circle
Livermore, CA 94551 |
| Phone number: | 925-373-5280 |
Airport Operations and Facilities
| Airport Use: | Open to public |
| Wind indicator: | Yes |
| Segmented Circle: | Yes |

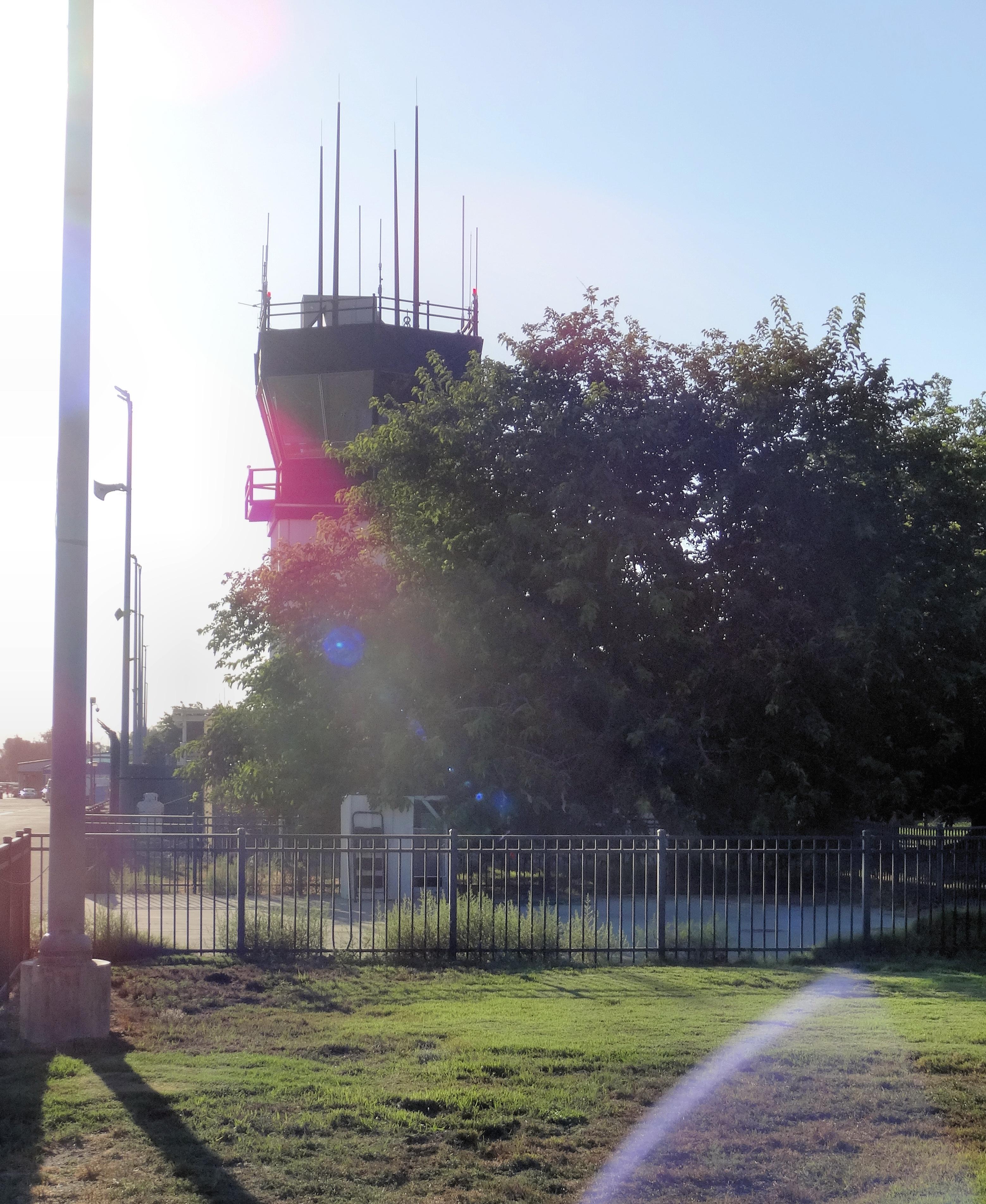

| Control Tower: | Yes |
| Lighting Schedule: | DUSK-DAWN
ACTVT MALSR RY 25R AND TWY LGTS WHEN ATCT CLSD - 118.1 |
| Beacon Color: | Clear-Green (lighted land airport) |
| Landing fee charge: | No |
| Sectional chart: | San Francisco |
| Region: | AWP - Western-Pacific |
| Traffic Pattern Alt: | 1000 ft |
| Boundary ARTCC: | ZOA - Oakland |
| Tie-in FSS: | OAK - Oakland |
| FSS on Airport: | No |
| FSS Toll Free: | 1-800-WX-BRIEF |
| NOTAMs Facility: | LVK (NOTAM-d service avaliable) |
| Federal Agreements: | NGY |
Airport Communications
| CTAF: | 118.100 |
| Unicom: | 122.950 |
Airport Services
| Fuel available: | 100LLA |
| Airframe Repair: | MAJOR |
| Power Plant Repair: | MAJOR |
| Bottled Oxygen: | HIGH |
| Bulk Oxygen: | HIGH |
|
Runway Information
Runway 07L/25R
| Dimension: | 5253 x 100 ft / 1601.1 x 30.5 m |
| Surface: | ASPH, Good Condition |
| Weight Limit: | Single wheel: 45000 lbs.
Dual wheel: 60000 lbs. |
| Edge Lights: | Medium |
| |
Runway 07L |
Runway 25R |
| Longitude: | 121-49-45.8414W | 121-48-40.4963W |
| Latitude: | 37-41-38.1690N | 37-41-37.6538N |
| Elevation: | 373.00 ft | 400.00 ft |
| Alignment: | 90 | 127 |
| ILS Type: | | ILS
|
| Traffic Pattern: | Left | Right |
| Markings: | Non-precision instrument, Good Condition | Precision instrument, Good Condition |
| Crossing Height: | 32.00 ft | 48.00 ft |
| VASI: | 4-light PAPI on right side | 4-box on left side |
| Visual Glide Angle: | 4.00° | 3.00° |
| Obstruction: | 27 ft pole, 650.0 ft from runway, 420 ft right of centerline, 16:1 slope to clear
+6 FT FENCE 180 FT FM RY END 400 FT LEFT OF EXTDD CNTRLN. | 20 ft trees, 700.0 ft from runway, 250 ft left of centerline, 25:1 slope to clear |
|
Runway 07R/25L
| Dimension: | 2699 x 75 ft / 822.7 x 22.9 m |
| Surface: | ASPH, Good Condition |
| Weight Limit: | Single wheel: 12500 lbs. |
| |
Runway 07R |
Runway 25L |
| Longitude: | 121-49-30.3151W | 121-48-56.7363W |
| Latitude: | 37-41-33.1092N | 37-41-32.8364N |
| Elevation: | 379.00 ft | 395.00 ft |
| Alignment: | 90 | 127 |
| Traffic Pattern: | Right | Left |
| Markings: | Basic, Fair Condition | Basic, Fair Condition |
|
Radio Navigation Aids
| ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
| LV | NDB | Reiga | | 374.00 | 16E | 6.5 nm |
| TCY | NDB | Tracy | | 203.00 | 15E | 17.9 nm |
| PDG | NDB | Pajar | | 327.00 | 17E | 46.9 nm |
| NUQ | TACAN | Moffett | 123X | | 17E | 19.3 nm |
| SUU | TACAN | Travis | 113X | | 17E | 33.7 nm |
| TZZ | VOR | Travis | | 116.40 | 17E | 39.1 nm |
| SJC | VOR/DME | San Jose | 088X | 114.10 | 16E | 20.1 nm |
| CCR | VOR/DME | Concord | 117X | 117.00 | 17E | 23.7 nm |
| SFO | VOR/DME | San Francisco | 105X | 115.80 | 17E | 26.7 nm |
| MOD | VOR/DME | Modesto | 093X | 114.60 | 17E | 41.2 nm |
| OAK | VORTAC | Oakland | 115X | 116.80 | 17E | 19.3 nm |
| OSI | VORTAC | Woodside | 086X | 113.90 | 17E | 28.5 nm |
| ECA | VORTAC | Manteca | 107X | 116.00 | 17E | 32.0 nm |
| SAU | VORTAC | Sausalito | 109X | 116.20 | 17E | 34.8 nm |
| SGD | VORTAC | Scaggs Island | 058X | 112.10 | 17E | 39.2 nm |
| LIN | VORTAC | Linden | 095X | 114.80 | 17E | 45.0 nm |
| SAC | VORTAC | Sacramento | 099X | 115.20 | 17E | 46.9 nm |
| SFO | VOT | San Francisco Intl | | 111.00 | | 26.8 nm |
Remarks
- CAUTION CONSIDERABLE BIRD ACTIVITY ON & IN VICINITY OF ARPT.
- DO NOT MISTAKE PARALLEL TAXIWAY N OF RWY 25R/7L AS RWY. NOISE SENSITIVE AREAS 3/4 MILE EAST & 2 MILES W OF ARPT.
- EFFECTIVE RY GRADIENT RY 07L 0.52% UP; RY 07R 0.59% UP.
