St Petersburg-clearwater International Airport (PIE) - FAA Information
St Petersburg-clearwater, FL
|

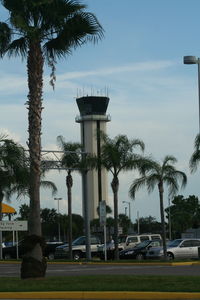

Latest photos of St Petersburg-clearwater International Airport (PIE)
by metricbolt |
by N6701 |
| |
Location & QuickFacts
| FAA Information Effective: | 2008-06-05 |
| Airport Identifier: | PIE |
| Airport Status: | Operational |
| Longitude/Latitude: | 082-41-14.7000W/27-54-36.0000N
-82.687417/27.910000 (Estimated) |
| Elevation: | 11 ft / 3.35 m (Surveyed) |
| Land: | 1900 acres |
| From nearest city: | 8 nautical miles N of St Petersburg-clearwater, FL |
| Location: | Pinellas County, FL |
| Magnetic Variation: | 02W (1990) |
Owner & Manager
| Ownership: | Publicly owned |
| Owner: | County Of Pinellas |
| Address: | St Petersburg-clearwater Intl, 14700 Terminal Blvd. Suite 221
Clearwater, FL 33762 |
| Phone number: | 727-453-7800 |
| Manager: | Noah Lagos |
| Address: | St Petersburg-clearwater Intl, 14700 Terminal Blvd. Suite 221
Clearwater, FL 33762 |
| Phone number: | 727-453-7800 |
Airport Operations and Facilities
| Airport Use: | Open to public |
| Wind indicator: | Yes |
| Segmented Circle: | No |
| Control Tower: | Yes |
| Lighting Schedule: | DUSK-DAWN
WHEN ATCT CLSD, ACTVT MIRL RYS 04/22 & 09/27, HIRL RY 17L/35R, AND TWY LGTS- CTAF. |
| Beacon Color: | Clear-Green (lighted land airport) |
| Landing fee charge: | No |
| Sectional chart: | Miami |
| Region: | ASO - Southern |
| Traffic Pattern Alt: | 800 ft |
| Boundary ARTCC: | ZMA - Miami |
| Tie-in FSS: | PIE - Saint Petersburg
CTC ST PETERSBURG RADIO FOR AIRPORT ADVISORY SERVICE ON 118.3 WHEN TOWER IS CLSD. |
| FSS on Airport: | Yes |
| FSS Toll Free: | 1-800-WX-BRIEF |
| NOTAMs Facility: | OMN (NOTAM-d service avaliable) |
| Certification type/date: | I C S 11/1974 |
| Federal Agreements: | NGPRY3 |
Airport Communications
| CTAF: | 118.300 |
| Unicom: | 122.950 |
Airport Services
| Fuel available: | 100 A A1+ |
| Airframe Repair: | MAJOR |
| Power Plant Repair: | MAJOR |
| Bottled Oxygen: | NONE |
| Bulk Oxygen: | HIGH/LOW
|
|
Runway Information
Runway 04/22
| Dimension: | 5903 x 150 ft / 1799.2 x 45.7 m |
| Surface: | ASPH, Fair Condition |
| Weight Limit: | Single wheel: 80000 lbs.
Dual wheel: 130000 lbs.
Dual tandem wheel: 235000 lbs. |
| Edge Lights: | Medium |
| |
Runway 04 |
Runway 22 |
| Longitude: | 082-41-20.9102W | 082-40-38.8631W |
| Latitude: | 27-53-59.9042N | 27-54-44.8583N |
| Elevation: | 10.00 ft | 5.00 ft |
| Alignment: | 40 | 127 |
| Traffic Pattern: | Left | Left |
| Markings: | Non-precision instrument, Good Condition | Non-precision instrument, Good Condition |
| Crossing Height: | 31.00 ft | 35.00 ft |
| VASI: | 4-light PAPI on left side | 4-light PAPI on left side |
| Visual Glide Angle: | 3.00° | 3.00° |
| Runway End Identifier: | Yes | Yes |
| Obstruction: | , 50:1 slope to clear | 13 ft road, 460.0 ft from runway, 20:1 slope to clear |
|
Runway 09/27
| Dimension: | 5165 x 150 ft / 1574.3 x 45.7 m |
| Surface: | ASPH, Good Condition |
| Weight Limit: | Single wheel: 60000 lbs.
Dual wheel: 115000 lbs.
Dual tandem wheel: 200000 lbs. |
| Edge Lights: | Medium |
| |
Runway 09 |
Runway 27 |
| Longitude: | 082-41-43.5610W | 082-40-46.0219W |
| Latitude: | 27-54-33.3671N | 27-54-35.0207N |
| Elevation: | 10.00 ft | 5.00 ft |
| Alignment: | 88 | 127 |
| Traffic Pattern: | Left | Left |
| Markings: | Non-precision instrument, Good Condition | Non-precision instrument, Good Condition |
| Crossing Height: | 59.00 ft | 52.00 ft |
| VASI: | 4-light PAPI on left side | 4-box on left side |
| Visual Glide Angle: | 3.50° | 3.00° |
| Runway End Identifier: | Yes | Yes |
| Obstruction: | 65 ft pole, 1580.0 ft from runway, 300 ft left of centerline, 21:1 slope to clear | 34 ft trees, 1596.0 ft from runway, 275 ft right of centerline, 40:1 slope to clear |
|
Runway 17L/35R
| Dimension: | 9730 x 150 ft / 2965.7 x 45.7 m |
| Surface: | ASPH, Good Condition |
| Surface Treatment: | Saw-cut or plastic Grooved |
| Weight Limit: | Single wheel: 75000 lbs.
Dual wheel: 195000 lbs.
Dual tandem wheel: 320000 lbs.
Dual dual tandem wheel: 700000 lbs. |
| Edge Lights: | High |
| |
Runway 17L |
Runway 35R |
| Longitude: | 082-41-26.5386W | 082-41-10.1532W |
| Latitude: | 27-55-24.2915N | 27-53-49.0563N |
| Elevation: | 6.00 ft | 10.00 ft |
| Alignment: | 127 | 127 |
| ILS Type: | ILS
| ILS/DME |
| Traffic Pattern: | Left | Left |
| Markings: | Precision instrument, Fair Condition | Precision instrument, Fair Condition |
| Crossing Height: | 68.00 ft | 76.00 ft |
| Displaced threshold: | 0.00 ft | 930.00 ft |
| VASI: | 4-light PAPI on left side | 4-light PAPI on left side |
| Visual Glide Angle: | 3.00° | 3.00° |
| RVR Equipment: | touchdown, midfield, rollout | |
| Approach lights: | MALSR | |
| Runway End Identifier: | | No |
| Centerline Lights: | Yes | Yes |
| Touchdown Lights: | Yes | No |
| Decleard distances: | Take off run available 9180.00 ft
Take off distance available 9730.00 ft
Actual stop distance available 9180.00 ft
Landing distance available 9180.00 ft
| Take off run available 9650.00 ft
Take off distance available 9730.00 ft
Actual stop distance available 9650.00 ft
Landing distance available 8720.00 ft
|
|
Runway 17R/35L
| Dimension: | 4000 x 75 ft / 1219.2 x 22.9 m |
| Surface: | ASPH, Good Condition |
| Weight Limit: | Single wheel: 75000 lbs.
Dual wheel: 150000 lbs.
Dual tandem wheel: 220000 lbs.
Dual dual tandem wheel: 500000 lbs. |
| |
Runway 17R |
Runway 35L |
| Longitude: | 082-41-30.7867W | 082-41-24.0437W |
| Latitude: | 27-55-16.2255N | 27-54-37.0774N |
| Elevation: | 6.00 ft | 8.00 ft |
| Alignment: | 127 | 127 |
| Traffic Pattern: | Left | Left |
| Markings: | Basic, Good Condition | Basic, Good Condition |
| Crossing Height: | 0.00 ft | 40.00 ft |
| Displaced threshold: | 0.00 ft | 558.00 ft |
| VASI: | | 2-light PAPI on left side |
| Visual Glide Angle: | 0.00° | 4.00° |
| Obstruction: | , 50:1 slope to clear | 58 ft acft, 1420.0 ft from runway, 183 ft left of centerline, 21:1 slope to clear |
|
Radio Navigation Aids
| ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
| AM | NDB | Picny | | 388.00 | 02W | 8.1 nm |
| TPF | NDB | Knight | | 270.00 | 02W | 12.4 nm |
| PCM | NDB | Plant City | | 346.00 | 02W | 28.7 nm |
| RHZ | NDB | Zephyrhills | | 253.00 | 03W | 34.0 nm |
| CHN | NDB | Wauchula | | 261.00 | 04W | 49.1 nm |
| MCF | TACAN | Macdill | 047X | | 04W | 9.7 nm |
| PIE | VORTAC | St Petersburg | 111X | 116.40 | 01E | 0.2 nm |
| SRQ | VORTAC | Sarasota | 099X | 115.20 | 02W | 31.6 nm |
| LAL | VORTAC | Lakeland | 107X | 116.00 | 01E | 36.1 nm |
| TPA | VOT | Tampa Intl | | 111.00 | | 9.1 nm |
Remarks
- BANNER TOWING PROHIBITED ON AIRPORT.
- BIRDS ON AND IN VICINITY OF ARPT.
- PPR FOR USE OF COMPASS ROSE, CTC 727 539-0071
-
- MILITARY INFO; CONTRACT AVOIL O-128 AVAILABLE.
-
- TWY T WEST OF TWY C IS RESTRICTED TO ACFT WITH WINGSPANS OF LESS THAN 49 FT.
- IN MNM VIS CONDS BRIGHT LGTS ON HWY N OF ARPT MAY BE MISTAKEN FOR RY LGTS.
